Adjustable wind bracing a favourite with users, architects and structural engineers

Tekst Carolien KleesBeeld Willems Anker

Balkonophanging met Willems Anker.
Balkonophanging met Willems Anker.

“When I’m at Schiphol, I find myself looking up all the time,” says Marcel van der Wielen with a laugh. “Thousands of our wind braces have been used here.” The sales manager at Willems Boven-Leeuwen explains why the patented wind brace has become one of the most widely used stability bracing systems. “We developed this system ourselves in 1985, and it became widely known when structural engineers and architects began specifying it in their specifications. This applies to both the Dutch and Belgian markets. Thanks to its high degree of adjustability and patented design, the certified system always fits. The standardised bolted connections, together with clear labelling, make it a ready-to-install system that can be assembled very quickly.”

The Willems Anker is a steel stability brace. The product can be used worldwide thanks to the required certifications. Its high degree of adjustability ensures optimal installation and allows for simple corrections. With CE certification and suitability for execution class EXC4, Willems Anker can also be used in demanding construction projects.

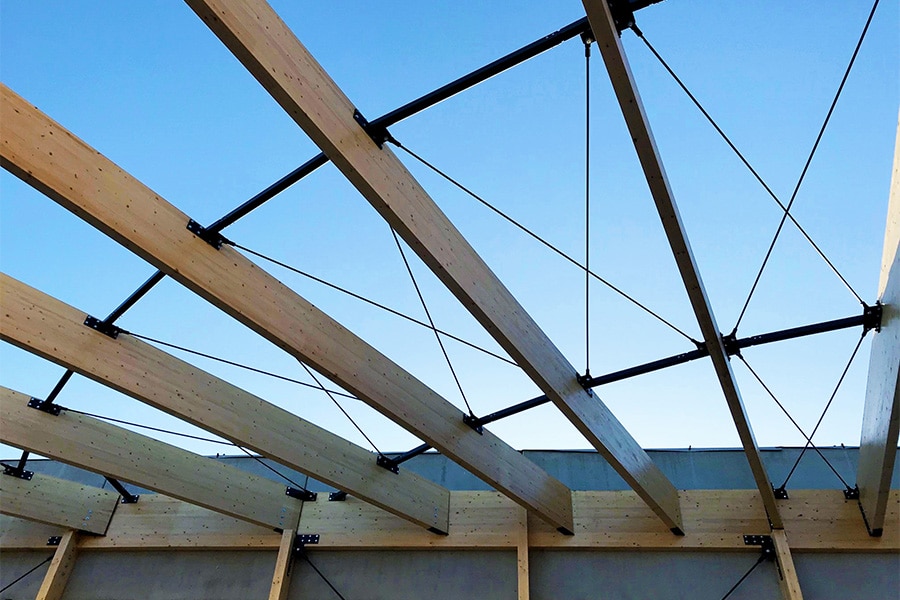

Willems Anker used in timber construction.

Wide range of applications

The system ensures the stability of steel construction, concrete structures, timber-frame construction and hybrid structures. Applications range from balcony supports and stair installation to bridge structures. “For example, we were commissioned to produce M80 Willems Ankers for the Lamgatsebrug between Halderberge and Moerdijk.” The list of examples is extensive: Willems Ankers can be found at the new ABN AMRO office in Amsterdam and Rotterdam Central Station, as well as in the Haagse Hoftoren and Thialf Stadium in Heerenveen.

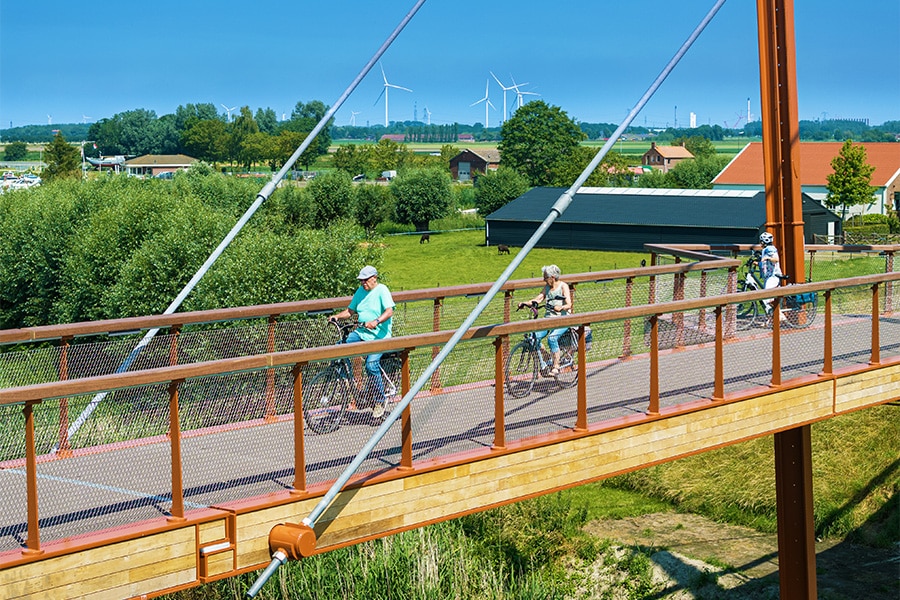

M80 Willems Ankers were produced for the Lamgatsebrug between Halderberge and Moerdijk.

Easy to install

“We offer a ready-to-order solution that is still made to measure. Customers give us the bolt connection’s centre-to-centre dimension, and we ensure the product is delivered ready for installation. We label every individual position, which saves a great deal of time searching. And thanks to the standard bolted connection, installers do not need special tools. The patent covers the design of our clevis. The inside of our clevis is rounded, whereas it is flat on alternative wind braces. Thanks to its rounded shape, our system always fits, regardless of the angle relative to the mounting plate.”

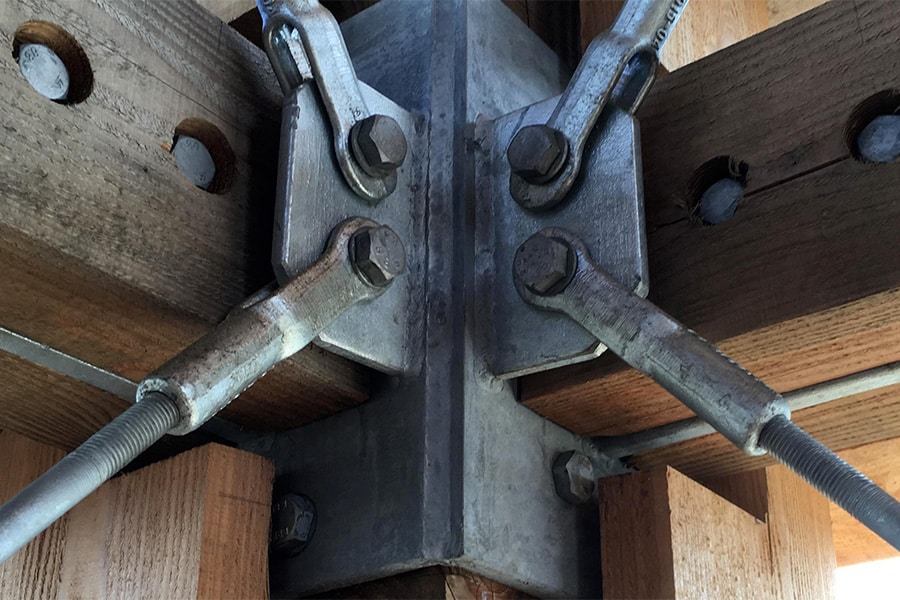

A combination of timber and steel in an observation tower.

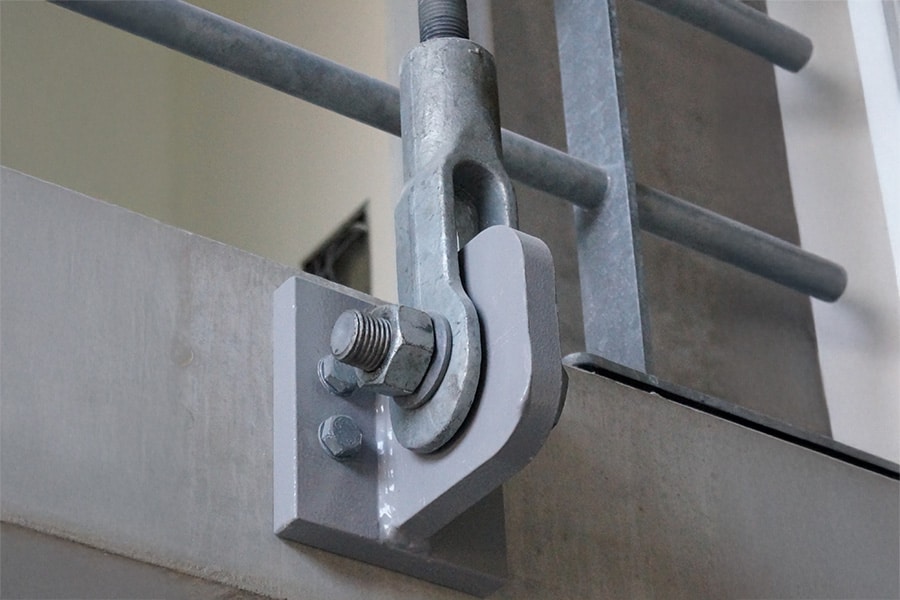

Gallery suspension at a prison in Zaanstad.

Elegant

Willems Anker’s elegant appearance makes it very popular with architects. “We use only high-quality steel grades. This means less steel is needed, allowing us to create a more slender design. That is more attractive aesthetically. It also gives architects greater design freedom, and when used in slender structures, it causes little disruption. After all, it is a system that deserves to be seen. Another advantage is that using less steel also means a lower environmental impact.”

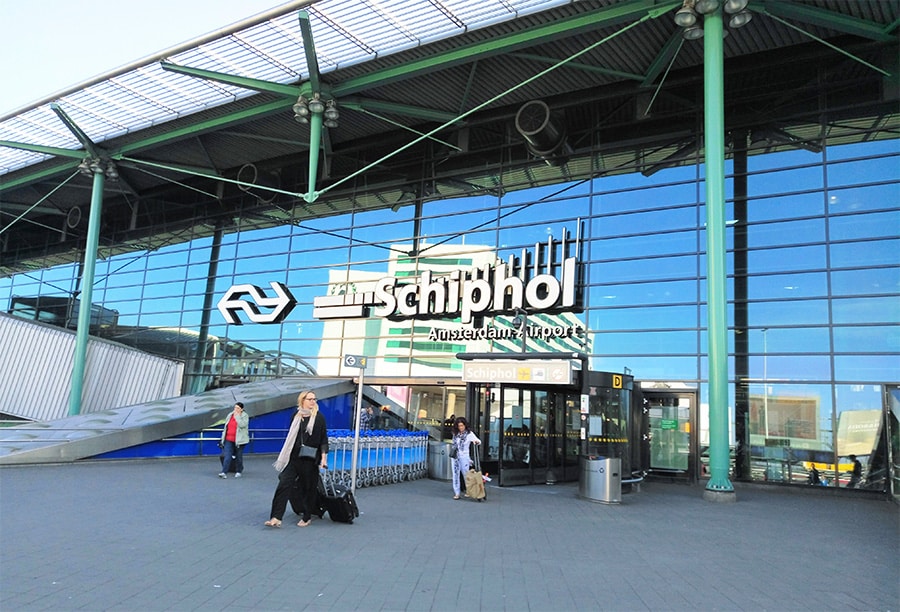

Thousands of Willems Anker wind braces have been used at Schiphol.

Online calculation tool

For some time now, Willems Anker customers have had access to an online calculation tool. “They can use it to calculate the price and place an order straight away. We’ve had a lot of positive feedback, because previously they had to request this by phone or email. Now we see people on site using an iPad to calculate the cost and, as soon as they have the customer’s approval, clicking ‘order’ and that’s it. Previous orders can also be viewed through this channel, so it really does function as an online platform.”
