‘The entire façade is fixed to the building using our systems’

Tekst Jean van PolBeeld Hilti Nederland

De volledige gevel van The BaanTower is verankerd met bevestigingsmaterialen van Hilti.
De volledige gevel van The BaanTower is verankerd met bevestigingsmaterialen van Hilti.

Fixings supplier is a full member of The BaanTower project team

Construction is currently under way on one of Rotterdam’s most striking high-rise projects: The BaanTower. The façade engineering, which uses thousands of undercut anchors, is also exceptional. From the outset of the façade work, Hilti has not only supplied fixings, but also acted as a sounding board for the project team, demonstrating the added value it can bring.

Hilti was invited to advise on the anchoring of the natural stone façade panels.

Hilti focused on two main disciplines for The BaanTower project: façade engineering and building services engineering. Thomas Goedegebuure, business developer facade at Hilti Nederland, was primarily involved in the façades. “The first discussions about the façade cladding for The BaanTower took place in autumn 2022,” he says of the 159-metre-high residential tower, which is due for completion in 2026. “Hilti was invited to advise on the anchoring of the natural stone façade panels and the installation of the large window frames supplied by façade contractor Blitta.”

Almost 16,000 anchor channels were incorporated into The BaanTower’s façade.

Full member of the project team

According to Goedegebuure, what makes this project so special for Hilti is its role in the project team. “We are not an external supplier that simply delivers what is requested, but a full-fledged sounding board. Regular meetings were held with the chief structural engineer, the detailed design engineer, Blitta, the natural stone supplier, main contractor RED Bouw and developer. That made all the difference. It was precisely the collaboration between all the parties that enabled us to deliver a reliable and efficient façade structure together.”

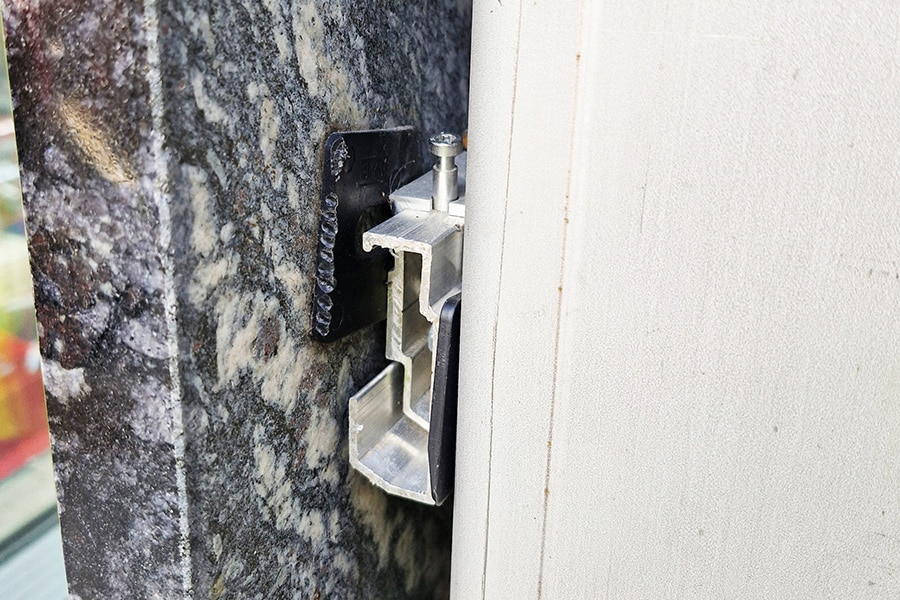

Mock-up façade section featuring undercut anchors, an aluminium support profile and anchor channels, all supplied by Hilti.

Smart anchoring

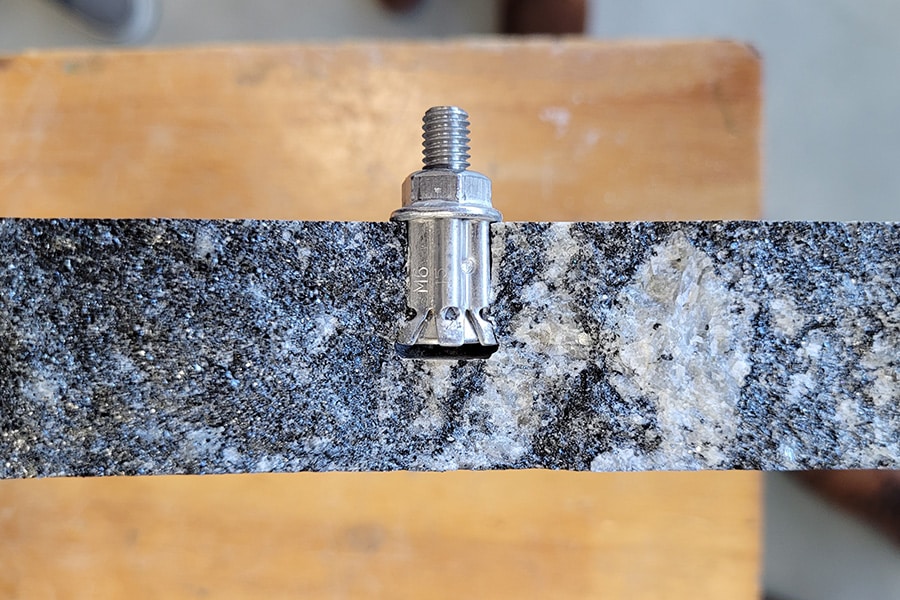

An important element of the façade engineering was the use of Hilti’s HSU-R undercut anchors. “These are small anchors installed in the back of the natural stone panels. Just four are needed per panel to secure the entire panel safely,” says Goedegebuure. “Extensive testing and procedures were completed before work began, and a mock-up of the aluminium subframe was built. This test installation can be viewed on site.”

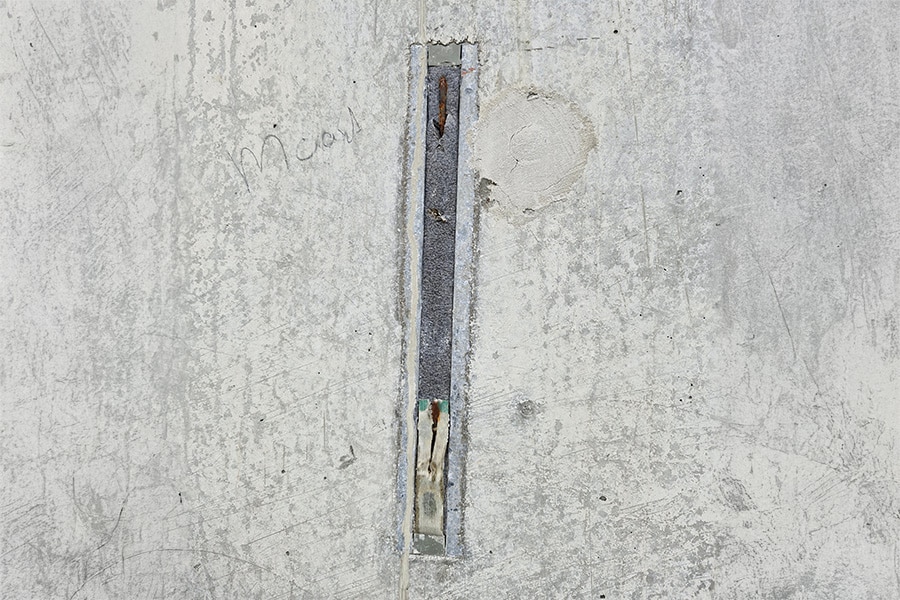

The installation method using anchor channels was also innovative.

Innovative installation method

The installation method was also innovative. Rather than drilling on site, the anchors were incorporated during concrete pouring. Hilti supplied the anchor channels for this purpose. Unusually, the same channels had to accommodate the fixings for both the natural stone and Blitta’s enormous window frames. “Initially, it was thought that this would require five to ten different types of anchor channel,” Goedegebuure continues. “That would have made installation extremely complex. During the engineering phase, we worked with the partners to reduce this to two types. That greatly simplified the process and reduced the risk of errors. This is where you can really see the added value of our role as a sounding board. Solutions like this can only be developed when all parties are on the same team and their interests are considered together.”

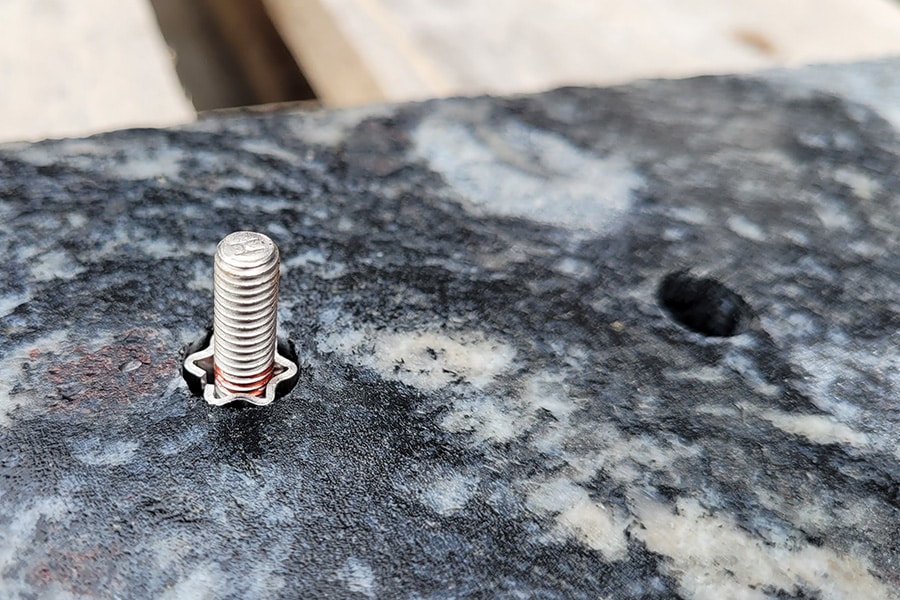

Small anchors were installed in the back of the natural stone panels.

A solid foundation

The result is that the entire façade is anchored using Hilti products: almost 16,000 anchor channels and 60,000 undercut anchors were used. “So we can now rightly say: the entire façade is fixed to the building using Hilti products,” says a proud Goedegebuure.

For Hilti, The BaanTower is more than an impressive reference project. According to Goedegebuure, it shows what can be achieved when a supplier acts as a sounding board for the project team: “We identified requirements, developed and refined solutions, and reduced the risk of failure.” With The BaanTower, Hilti demonstrates that collaboration within the project team leads to more efficient processes and maximum safety during construction. This not only boosts productivity, but also ensures the building’s long-term sustainability.
